Vital-T: Tuning Fork Level Sensor for Solids

Vital-T: Tuning Fork Level Sensor for Solids

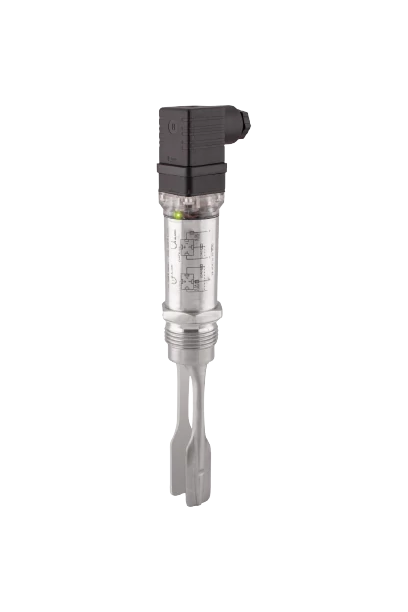

Item Code: VT

A compact fork type level switch based on a tuning fork working principle with a connection is useful for all types of solids. This kind of fork is suitable for solid level measurement techniques in process silos and hoppers. This vibrating rod for solid is suitable to avoid overflow conditions.
  • Power Supply: 18-30 V DC
  • Output: Open collector PNP, LED Indication
  • Application Temperature Range: Upto 150° C
  • Enclosure: IP68 Weatherproof
  • Process connections: Threads and Tri-Clamp
  • Wetted parts: SS 316
  • Compact probe length: 126 mm
  • Price Range: to Validity: 6 Months
    Stock Unit: Nos

Operating Principle

The working principle of vibrating fork level switch is based on tuning fork’s natural frequency measurement. A specially shaped tuning fork is continuously vibrating at its natural frequency using piezo-electric elements and detecting the changes in frequency in the presence of application media. The pressure applied on diaphragm drives the tuning fork's tines apart from each other and return to their original position when the pressure is removed. As the material level increases and comes in contact with the vibrating fork tines, the frequency of oscillation of tuning fork level switch dampens or decreases as it covered with the solid application media. The change in frequency is detected by the microprocessor leading to a switching decision. The threshold frequency is set to match the natural frequency of vibrating fork level switch under solid application.

Benefits

SS316 Installation

SS316 Installation

I

Small Compact tuning fork sensor

Small probe Size

Compactness of fork Compact probe length of level switch takes up less inventory space and is easy to install.

Smaller tuning fork sensor

Smaller compact fork

Fits fine within insulation pockets on applications silos. Helps in reducing fabrication cost.

Service friendly connections in vibrating forks

Service Friendly Plug-in Connection

Industry standard valve plug-in connection, easy to install and ready to use.

External circuit testing

External Circuit Testing

A simple diagnostic tool to check output connections and start diagnostics.

CAD View

Life of Level sensor

Application

Packaging Machine

Packaging machines are used in many industries. Large manufacturing of industries uses automatic packaging machines to fill the perfect quantity of material within the packets without any failure and material loss. This quick growth of the packing industry required a level switch to sense the appropriate filling of application material.

The compact size of Vital-T level switch is suitable for various type of powder application, having multiple features in a single level instrument make it feasible for various challenges.

level measurement in Packaging Industry

Valuable Insights

AS-Interface for Level Sensor
By Megha|Jan 12, 2021

AS-Interface for Fork Sensor

Our level switch tuning fork series is accessible with "AS-Interface" to reduce cable complexities and save cost.

Level Sensor for solids
By Megha|Sept 20, 2019

Level Sensor for solids

Our solid level indicator is used as one of the solid level measurement techniques to detect any solid media.

Download Section

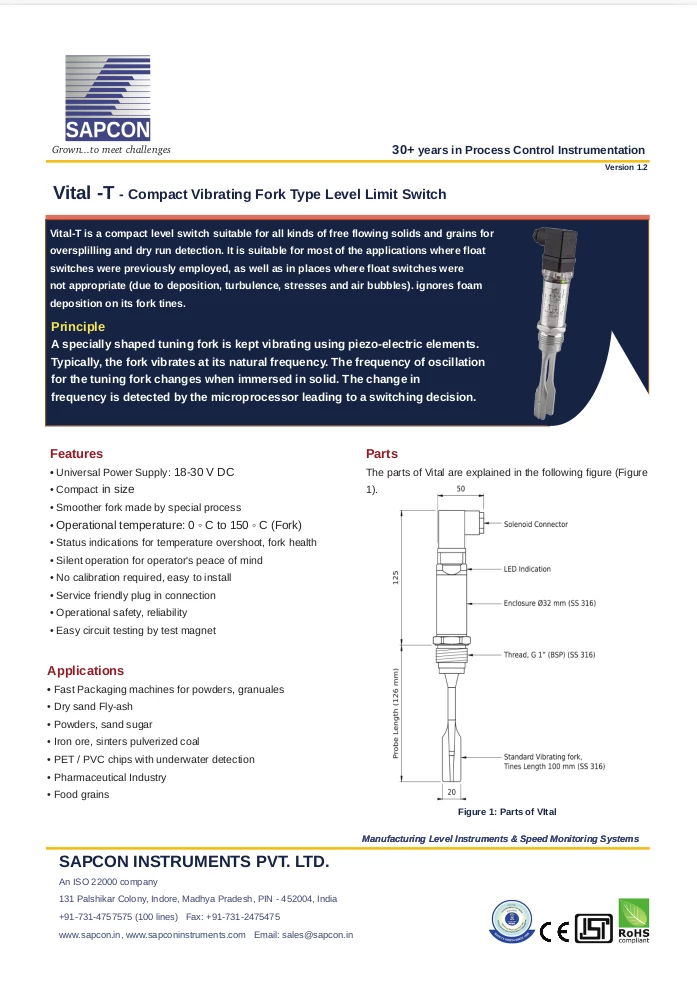

Vibrating Fork Level Sensor Datasheet
Datasheet

Briefly covers a general Introduction, Applications and Basic Specs.

Download

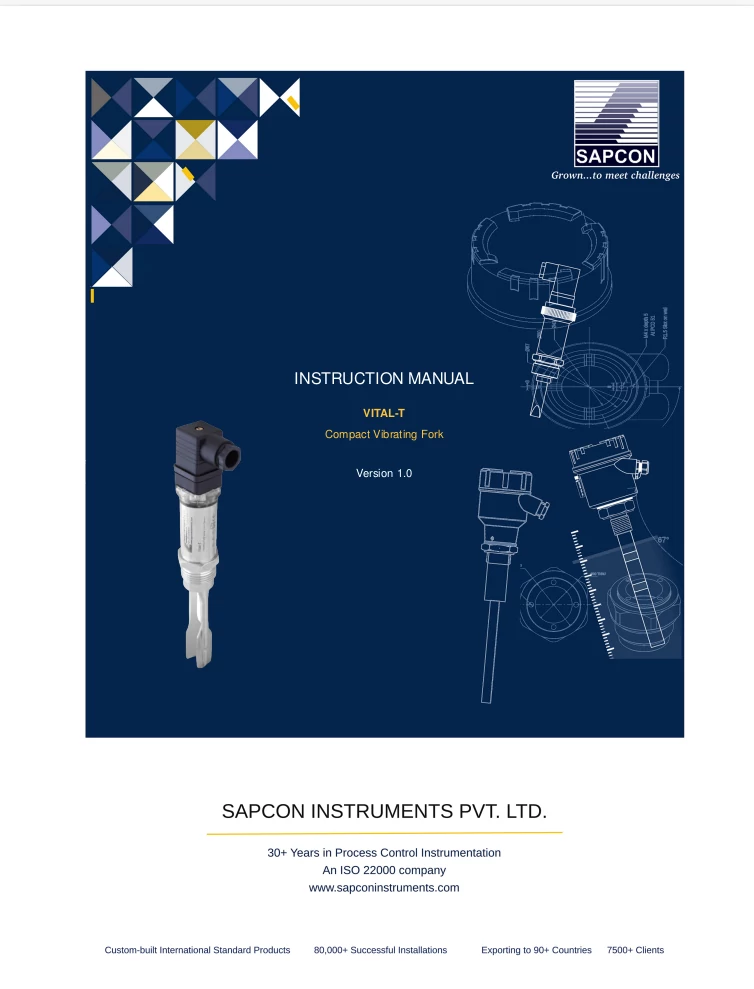

Vibrating Fork Level Sensor Instruction Manual
