SLA_B: RF Admittance Type Level Sensor for High Temperature Solids

Item Code: SLA_B

Admittance Level Limit Switch (Use media such as cement, fly ash, ESP hoppers, powders, sand, sugar, pulverized coal, food grains)
  • Universal Power Supply: 18-55 V DC & 90-265 V AC
  • Application Temperature Range: Up to 1000°C
  • Output: 1 & 2 SPDT Relay
  • Process Connection: Threads and Flanges
  • Remotely mounted electronics for upto 50m
  • Available in Integral & remote models
  • Certifications: Flame Proof IIA, IIB & IP65 Housing
  • Available in rod & rope type
  • Price Range: 9000 to 22000 Validity: 6 Months
    Stock Unit: Nos

Operating Principle

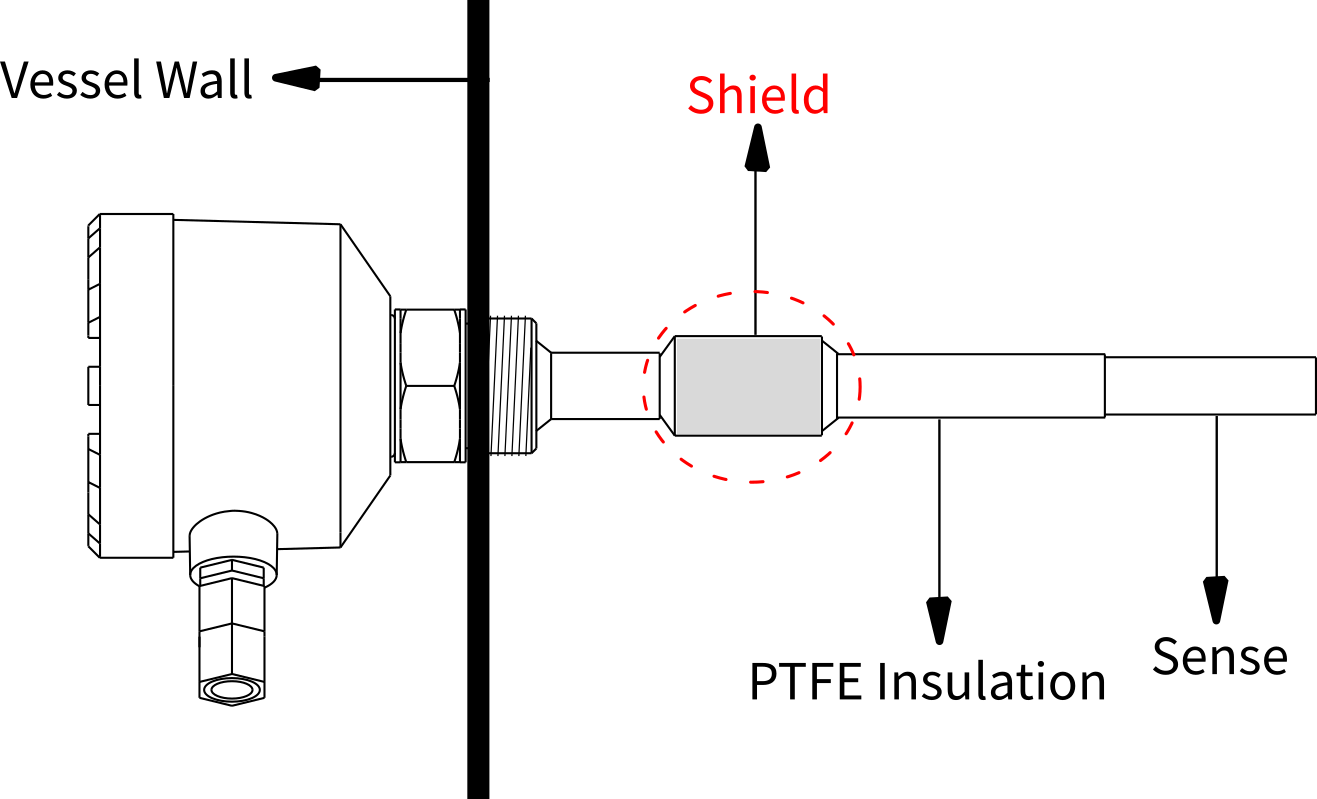

Admittance type level switches based on RF admittance principle. In this rf admittance working principle, the sense electrode and the vessel wall act as two electrodes of a capacitor and a material "shield" is proposed as an insulated electrode that will be added between ground and sense part. The sense and the shield are connected to the same source but they are electrically isolated from each other. Due to this, no RF current is flowing between the shield and the sense electrode. The main purpose of adding a shield is to block the RF current from reaching the vessel wall via the coating of the probe. This design helps the electronic circuitry to differentiate between build-up and the real material. As the level of the vessel increases, the dielectric changes which in turn causes a change in admittance. This change in admittance correctly measured by RF technique.

Applications

Sugar Industry

COVID Pandamic lockdown increases daily consumption of food which in turn results hike in the annual compound growth rate of the sugar industry by 4.6%. This sudden boost of the industry impact the production process requires level measuring devices to handle the severe temperature conditions as well as viscous molasses.

This level sensor requirement is completely fulfilled by our admittance type level switch which has build-up immunity to differentiate between the coating and real application media.

level measurement in Sugar Industry
level measurement in Tyre Industry

Tyre Industry

Resilient operational conditions are required to maintain performance and quality of tyres to sustain in the niche market. The performance of tyres reflects the usage of reliable process sensors within materials. These level instruments are useful even in low dielectric media.

Our admittance type level switch is perfectly suitable for these type of industries which has remote setup upto 50m to maintain easy control within the industrial sites as well as handle high temperature.

Rice Industry

Rice is the most important food crop whose global supply has been increasing rapidly because India is the second-largest producer and exporter in the world but the COVID situation adversely affects the overall industry.

Our reliable and cost-friendly admittance type level switches are fruitful level measuring solution which is available in rod and rope probe to be used as per storage tank dimensions.

level measurement in Rice Industry

Valuable Insights

RF Admittance Level Switch Probes
By Dhananjay|March 29, 2019

Level Sensor Probes

Depending on the density of solid media and temperature, RF admittance level switch's probe is differentiated.

Fly Ash Detection in ESP Hopper
By Megha|May 6, 2019

Fly Ash Level Detection

Detail description of challenges arises during operations and its proposed solutions of fly ash in ESP Hopper.
