Product Templates Item Code: VIBE
Price Range:
INR
7000 to
15000
Validity: 6 Months
Stock Unit: Nos
| Input Power Supply | 18-30 VDC |
| Ouput Mode | PNP output |
| Electrical Connector | M12 Connector |
| Switching | Single-Point Switching |
| Switching Indication |
|
| Power Consumption |
|
| Output Load Current | Max 100 mA |
| Voltage drop | Max 2.5V |
| Overload protection | Yes |
Operating Principle
Vibe works on the principle of capacitance. The probe comprises a sense electrode, electrically isolated from the metallic tank using a suitable insulator. The sense and the vessel wall serve as the two electrodes of a capacitor with the service material acting as the dielectric. A change in the level of material causes a change in the dielectric, which in turn causes the value of this tank capacitor to change.
Benefits

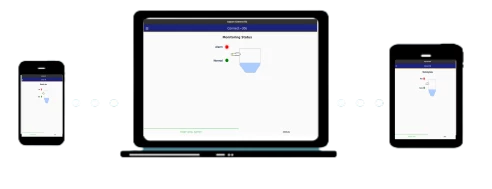

Smart Configuration
Smart and easy Installation through the application. Easy to configure the Vibe installation.

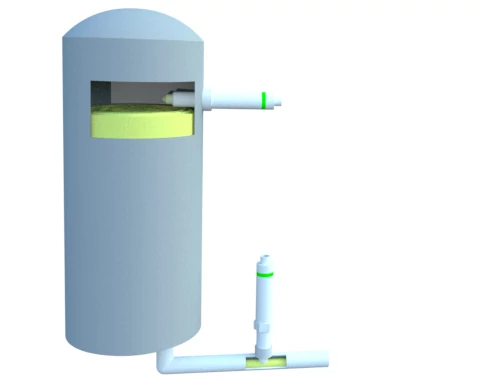

Storage Tank
More than 2000 variants cover a wide range of fittings and configurations in extensive applications.
Designed & Manufactured in India
As a manufacturer of level switches in India for over 40 years, Sapcon has proven itself across a wide variety of industries.

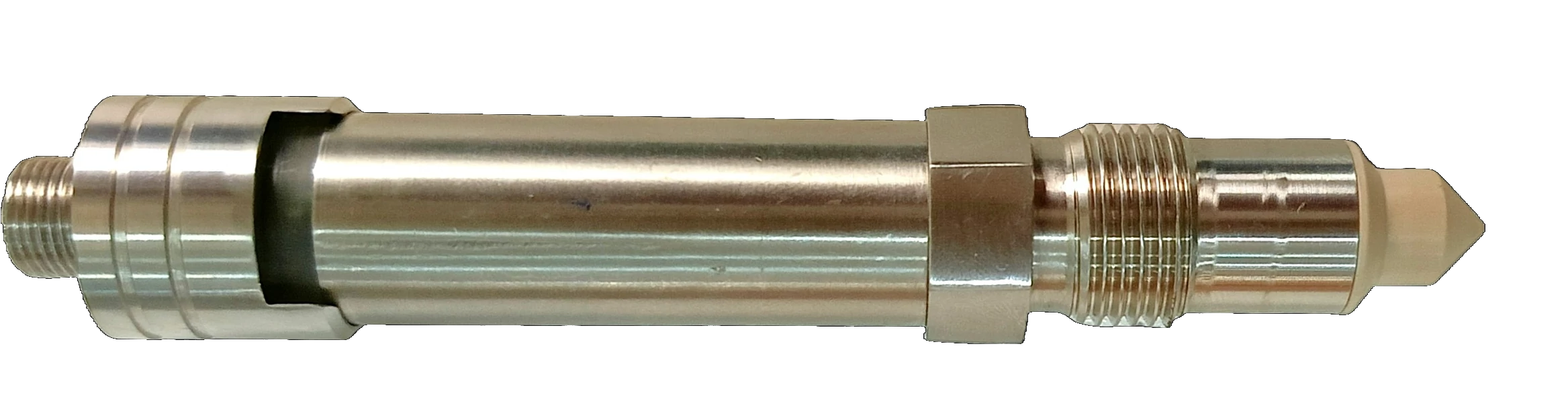

Compact Size
Compact housing & a short point level switch takes up less inventory space and is easy to install

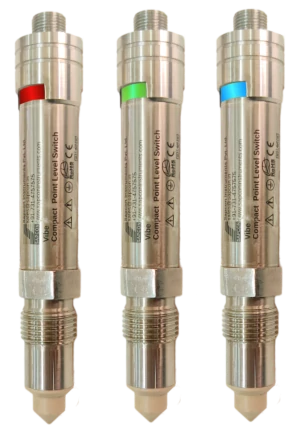

LED Indications
Multicolor LED Switch Indicator.
Applications
Pharmaceutical
The pharmaceutical sector has actively participated in the battle against the virus, researching potential treatment options and balancing the supply in times of need. Pharmaceutical industries improve the development of treatment.
The compact size of this point level switch facilitates installation in smaller mixing tanks and pipelines for process tanks.
Packaging-Machines
Fast automated packaging machines are needed in large production businesses to fill packets with the right amount of material without failure or material loss. Industrial sites increasingly require level instruments with quick switching capabilities. For them to fit into any little automated equipment, these process sensors must be modest in size.
The compact size of point switch also makes the right switching selections to increase the effectiveness of the process.
Grain Handling
Grain handling and management are required to remove impurities and broken pieces and keep stored grain in good condition. This processing includes bulk raw material handling which needs rigid level measuring devices to withstand in a sturdy situation. The overall process is lengthy.
Vibe Point level switch is ideal match to handle these type of operations.
