New: Coat-Endure Digital Display
Get a glimpse of the Coat-Endure: Digital Display for sticky solids, bulk solids, paste and slurries which is more advantageous for industries.
Introduction: Coat-Endure Digital Display

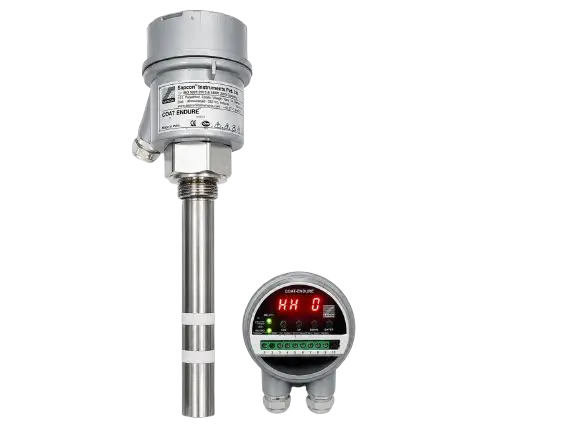

The Coat-Endure Digital Display is a compact RF Admittance level switch designed for both conductive and non-conductive application media, ensuring accurate and dependable level measurement.
Coat-Endure Digital Display can also be used to detect level of foam(water based) and also ignore foam buildup at the same time; the paints and chemical industry has applications with such requirement.
Design: Old
The old design composed of two Status LEDs used for switching purposes; indicating normal and alarm conditions. The DIP switches were used for configuring parameters like Time Delays, Calibration, Failsafe & Sensitivity.
While making changes to the configuration, user did not have a live visual feedback. Even after the changes, verifying the changed parameters was time consuming.

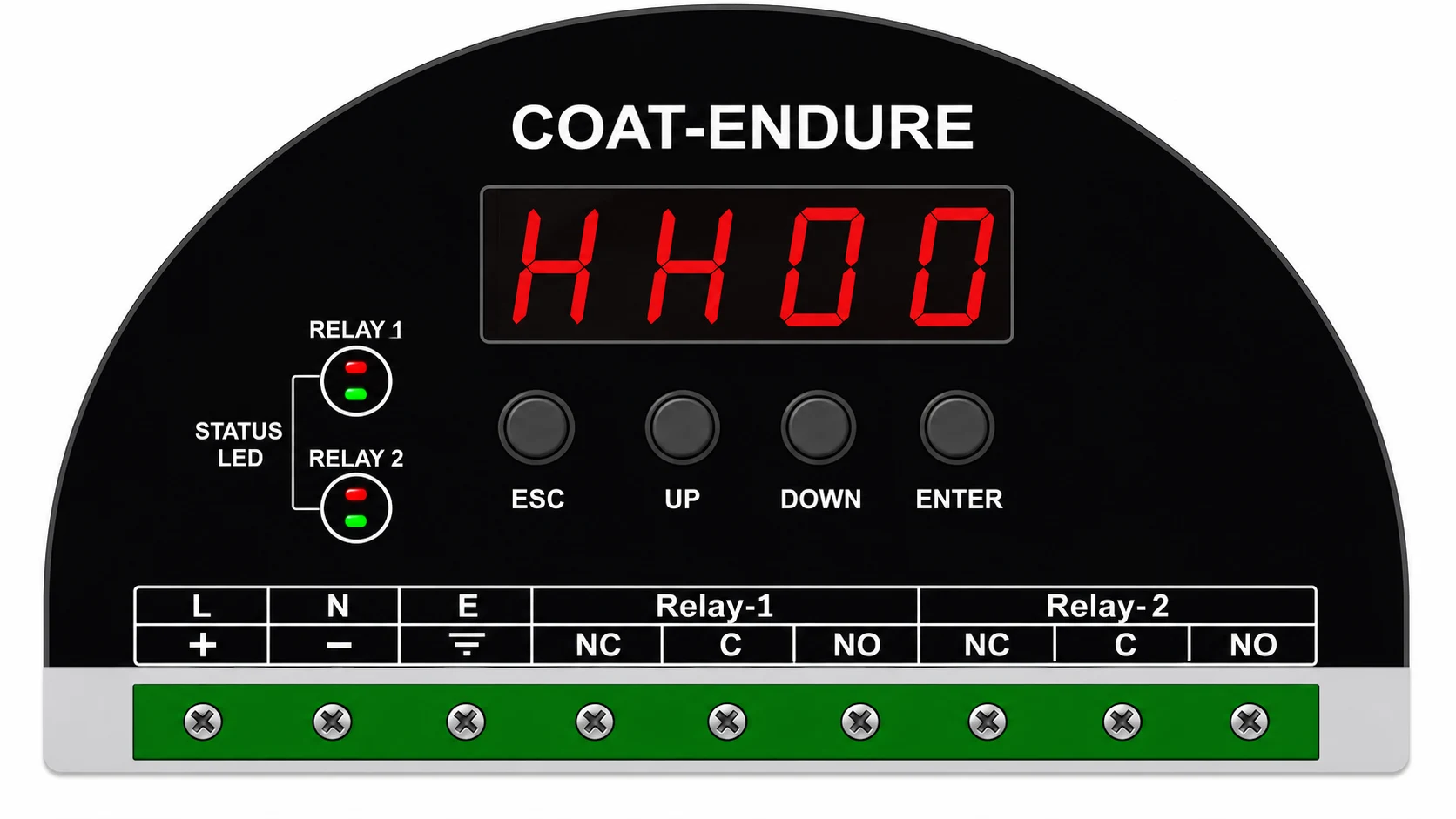

Design: New Display with Seven Segment Digital Display
The new display in Coat-Endure was prompted by feedback from our users. It also helped us to adapt popular display features from our SLA - RF Admittance Level Sensor and enhance them to help our users with configuration. It also enhances the live running response by showing the proximity to a switching point.
Uses of Seven Segment Digital Display
Following are the features implemented in new Coat-Endure Digital Display
Home Screen Display

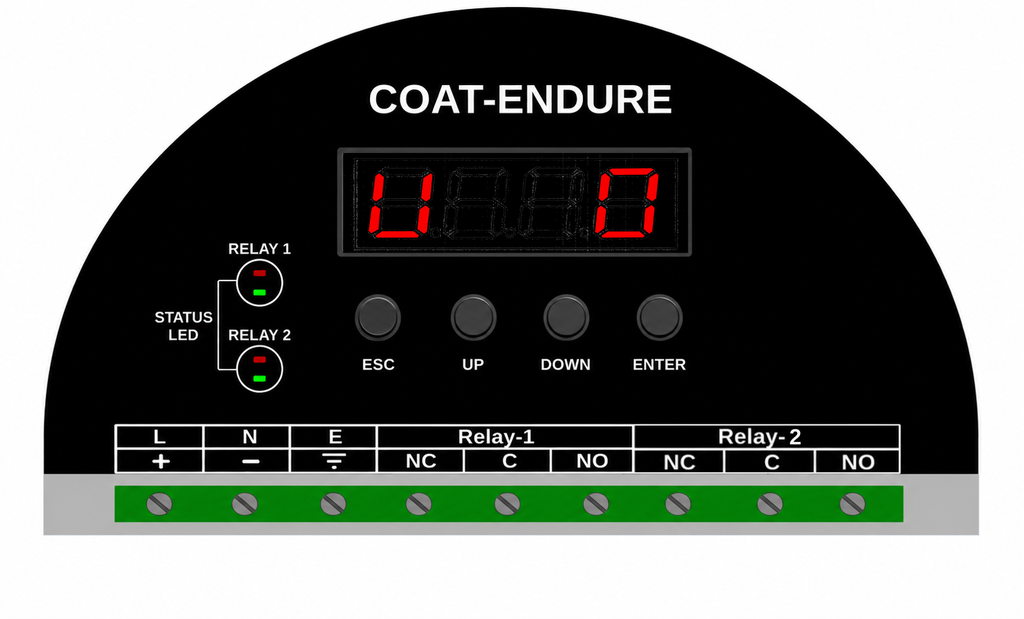

Home screen consist of two screens, Screen-1 indicates failsafe status & sensor state and Screen-2 indicates calibration mode & sense count.
Menu Screens
The Menu Screens shows set of all screens required for configure following:
- Calibration :
- Sensitivity :
- Hysteresis :
- Relay-1 & Relay-2 :
- Default :
- Service :
The instrument is need to be air and material calibrated.
Sensitivity of level sensor has to be adjusted depending on the dielectric constant of the application media.
Hysteresis of Level Sensor can be adjusted depending upon the switching threshold from covered state to uncovered state, Hysteresis value ranges from (0 to sensitivity value).
Relay settings can be adjusted depending upon Failsafe state and switching relay.
Factory Reset reset the time delays and sensitivity to the default values, it does not reset to any calibration values.
For Service team.
